Clear Perspex Cast Acrylic Light Guide Panel Laser Dot UV Printing

Clear Perspex Cast Acrylic Light Guide Panel Laser Dot UV Printing
Clear Perspex Cast Acrylic Light Guide Panel Laser Dot UV Printing Clear Perspex Cast Acrylic Light Guide Panel Laser Dot UV Printing

Large Image :  Clear Perspex Cast Acrylic Light Guide Panel Laser Dot UV Printing

Product Details:
Place of Origin: China, Shenzhen
Brand Name: XH
Certification: ISO FCC
Model Number: XH 00
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: 2.835USD per KG
Packaging Details: 1500kg/Tray
Delivery Time: 7 working days
Payment Terms: T/T, Western Union
Supply Ability: 500000kg/per Month

Clear Perspex Cast Acrylic Light Guide Panel Laser Dot UV Printing

Description
Size: 1220*2440mm, 1220*1830, 2050*3050, 1220*2440mm And So On, Custom Size Density: 1.2g/cm3,
Color: Transparent Package: Covered By PE Film Or Craft Paper On Double Sides
Process Service: Custom Cut To Size,laser Dot,UV Printing Processing Type: Cast
High Light:

Perspex Cast Acrylic Light Guide Panel

,

FCC Acrylic Light Guide Panel

,

Perspex Cast LED Acrylic Light Panels

Clear Perspex Cast Acrylic Light Guide Panel Laser Dot UV Printing

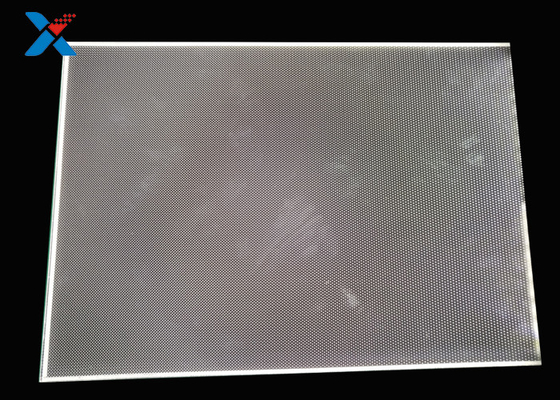

Clear acrylic light guide plate perspex LED laser dot plastic light panel

1.  Product Description

    The light guide plate is made of optical grade acrylic, and then uses high-tech materials with extremely high refractive index and no light absorption. Printing technology prints light guide points. The optical-grade acrylic sheet is used to absorb the light emitted from the lamp and stay on the surface of the optical-grade acrylic sheet. When the light hits each light guide point, the reflected light will spread to all angles, and then destroy the reflection conditions and be emitted from the front of the light guide plate. Through various light guide points of different density and size, the light guide plate can be made to emit light uniformly. The purpose of the reflective sheet is to reflect the light exposed on the bottom surface back into the light guide plate to improve the use efficiency of light; under the condition of the same area of luminous brightness, the luminous efficiency is high and the power consumption is low. The single-sided microstructure array light guide plate generally adopts the manufacturing process of extrusion molding.

Clear Perspex Cast Acrylic Light Guide Panel Laser Dot UV Printing 0


Clear Perspex Cast Acrylic Light Guide Panel Laser Dot UV Printing 1

2.  Parameter

Clear acrylic sheet perspex LED light guide panel
Item Place of Origin Guangdong China
Brand Name XH (Acrylic sheet manufacturer)
Model Number XH 00
Material High quality Virgin MMA raw material
Specification Thickness 0.8mm-20mm
Acrylic sheet Size 2440x1220mm, 1220*1830mm, customized
Density 1.2g/cm3
Appearance Color  Red or customized
Surface Double Polished
Process Available Processing Type Cast
Process Service Custom Cut to Size,laser dot,UV printing
Sample Sample fee Normal A4 size is free, just shipping fee
Sample Time Normal size, 2days
Customized sample Fee and time will be discussed by both
Supply Capacity Production Ability 50000 Pieces per Month
Stock Regular size stock is sufficient
Lead time 7-10 days after your order

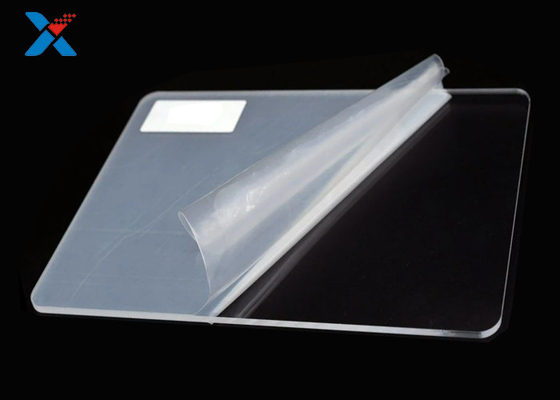

Package Acrylic sheet Covered by PE film or craft paper on double sides
Package Wooden pallet
Package size 2450mm*1250mm*700mm or customized
Package weight About 2000kg per pallet or customized
Trading Terms MOQ 50 Pieces
Main Market All over the world
Shipping Port Shenzhen/Guangzhou Port by Sea
Transportation By sea/ Air/ Express/Railway
Trading Terms FOB, EXW, CIF, CNF, FCA
Payment Terms T/T,Western Union, Paypal
Using Tips Storage Far away from organic solvents
Scratching Sharp objects may scratch the surface
Temperature Long time less than 85℃
Cleaning Clean with soft cloth or scrub with soap

 Clear Perspex Cast Acrylic Light Guide Panel Laser Dot UV Printing 2


3.  Acrylic sheet features:

1. Complete physical molding, environmental protection, no silk screen ink
2. The photoelectric conversion rate can reach 80%-90%.
3. High uniformity (90%), laser dots are individually designed for each specification
4. Durable, no light decay, long life, more than 8 years of normal indoor use
5. High weather resistance, more suitable for the harsh climatic conditions of export regions and regions
6. High production efficiency and short lead time. Using imported laser spotting machine, the daily output is 3-5 times that of general light guide plate manufacturers
7. Superior stability. The raw materials of the light guide plate are stable, the production documents are stable, and the machine production is stable


4.  Acrylic sheet Application

The light guide plate ultra-thin light box is a new type of advertising carrier (the industry calls it "ultra-thin light box", which is inspired by LCD TVs and draws on the backlight technology of LCD TVs. In fact, it is not a light box. ” is more appropriate, and its characteristics are as follows:
1. The appearance is beautiful, and its thickness is generally less than 3 cm, which maximizes the utilization of space, beautifies the environment, and broadens the scope of application.
2. The bright light output is completely flat and almost perfectly uniform, completely eliminating the light and dark light marks common to ordinary light boxes. Its excellent optical properties are not only widely used in public places, but also expand its application in high-tech fields such as precision display, photography and medical viewing, scientific research, and high-standard lighting. The effect is comparable to that of liquid crystal displays.
3. Its other commendable advantage is energy saving. Due to the use of advanced light guide plate lighting technology, the power consumption is only 23% of the ordinary light box with the same screen area. Calculated on the basis of 10 hours of electricity consumption per day for a light box with a screen area of ​​1M2, the annual power consumption of ordinary light boxes is nearly 900 kWh, and the annual power consumption of ultra-thin light boxes is only 200 kWh, saving 77% of electricity.
4. The special high-brightness and high-quality fluorescent lamp used in the ultra-thin light box has an average service life of more than 8,000 hours; the average service life of the special cold-cathode lamp is more than 15,000 hours. The life of the lamp used in the ultra-thin light box is 5 to 10 times that of the ordinary lamp. The extended service life significantly saves maintenance costs.
5. The ultra-thin light box widely adopts imported high-quality aluminum alloy open-type overall frame structure, equipped with movable hooks or hanging holes, which makes light box installation and screen replacement simple and fast, saving labor, time and money.


Clear Perspex Cast Acrylic Light Guide Panel Laser Dot UV Printing 3

5.XH Company and Production Line

Clear Perspex Cast Acrylic Light Guide Panel Laser Dot UV Printing 4



7.Package and shipping



7.1. One piece of acrylic sheet package: double-sided covered with kraft paper or PE film, the cover film does not have any LOGO of our company.

7.2. Tray package: the total weight of each pallet is about 2 tons, the bottom is wooden pallet or iron pallet, and the surrounding is packed with corrugated paper.

7.3. The packaging method of the whole container: 20-23 tons (about 3000 pieces) 20-foot container, 10-12 pallets.

Clear Perspex Cast Acrylic Light Guide Panel Laser Dot UV Printing 5
