| Brand Name: | XH |
| Model Number: | XH00 |
| MOQ: | 50pcs |
| Price: | 2.835USD per KG |
| Packaging Details: | 1500kg/Tray |
| Payment Terms: | T/T, Western Union |

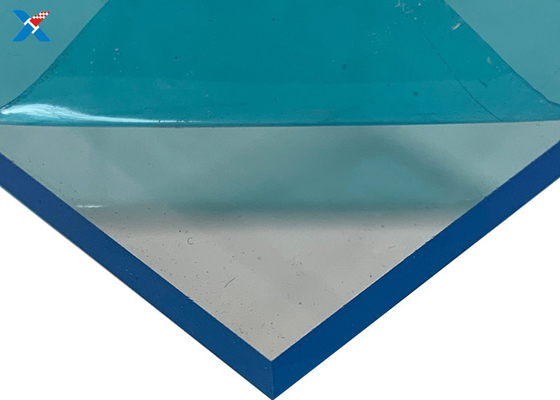

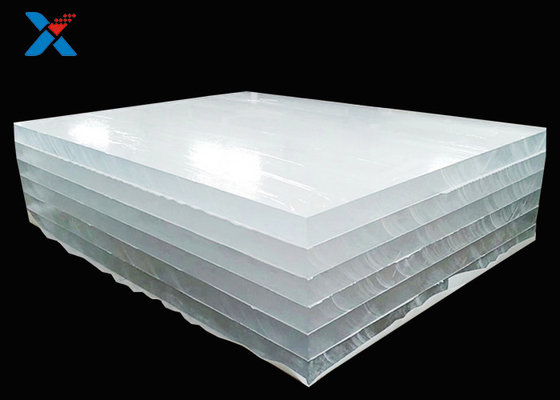

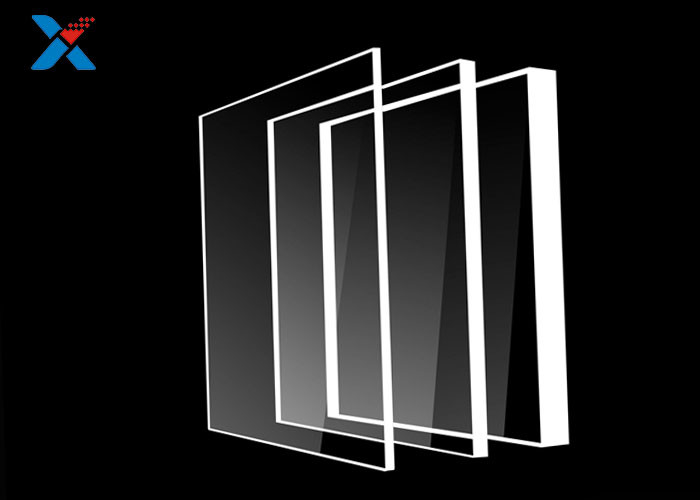

Transparent Clear Acrylic Sheets Cast Plastic Board Cut To Size
Transparent acrylic sheet thick large roofing cast plastic board cut to size
1. Product Description
Acrylic Cast Sheet: High molecular weight, excellent stiffness, strength, and excellent chemical resistance. This board is characterized by small batch processing, unparalleled flexibility in color system and surface texture effect, and complete product specifications for various special purposes.
Thermoforming has been one of the most creative uses of acrylic sheet for many years. With the improvement of processing technology and the enrichment and improvement of product variety and performance, compared with other traditional advertising signboard materials, acrylic processing is simpler and safer, and the cost performance of the product is more reasonable.
2. Parameter
| PROPERTIES | VALUES | RULES |
| Density | 1.19 g/cm3 | ISO 1183-1:2012 Method A |
| Rockwell Hardness | 112L | ISO 2039-2:1999 |
| Tensile Modulus | 3150MPa | EN ISO 527:2012 |
| Tensile Strength | 80.0MPa | EN ISO 527:2012 |
| Tensile Strain at Break | 3.2% | EN ISO 527-1:2012 |
| Water Absorption | 0.20% | ISO 62:2008 Method 1 |
| Total Luminous Transmittance | 93.4% | ISO 13468-1:1996 |
| Vicat Softening Temperature | 105℃ | ISO 306:2013 Method B50 |
| Light Ageing Test- UV Exposure | Grey scale: 5 | ISO 4892-3:2016 Cycle 1 |
| Mean Coefficient of Linear Thermal Expansion | 72×10-6 K-1 | ISO 11359-1:2014 |
| Compressive Stress at Yield | 129MPa | EN ISO 604:2003 |
| Flexural Strength | 120MPa | ISO 178:2013 |
| Compressive Yield Strength | 111MPa | ASTM D695-15 |
| Compressive Modulus | 3450MPa | ASTM D695-15 |
| Shear Strength | 59.7MPa | ASTM D732-17 |
| Deflection Temperature under Load | 100.2℃ | ASTM D648-18 Method B |
| Modulus Elasticity | 2810MPa | ASTM D695-15 |
3. Plexiglasss sheet Advantage
1. Weather resistance: Acrylic sheets have excellent outdoor weather resistance and can be considered the best among all plastic materials. Under normal outdoor use conditions, acrylic signboards with reasonable design and processing will not reduce their mechanical strength and their appearance will not change significantly after 10 years of use.
Second, the light transmission performance of the color plate: high-quality acrylic plates will be produced according to strict quality standards to ensure that different batches and different plates have the same color. Since the color of the color plate is evenly distributed along the entire thickness of the plate, the wear marks on the surface of the reverse card will have some influence on the appearance color when illuminated.
The transmittance of most acrylic swatches decreases as the thickness of the sheet increases, and for some signage applications, this effect can be detrimental - for example, using swatches of different thicknesses for the same sign at the same time , there will be obvious color difference. In this case, you can consider using some acrylic color plates with fixed transmittance colors. Although the thickness of the plates is the same, they show the same color transmittance.
Acrylic sheets and profiles: pipe rods, ordinary sheets, transparent sheets, colored sheets, textured sheets, solid flat sheets, multi-layer sheets, frosted sheets, corrugated sheets, impact-resistant sheets, special-grade sheets, national standard sheets, extra-thick sheets, and color-changing sheets.
4. Transparent Acrylic sheet Application
5. XH Company and Production Line
6. Package and shipping
6.1. One piece of acrylic sheet package: double-sided covered with kraft paper or PE film, the cover film does not have any LOGO of our company.
6.2. Tray package: the total weight of each pallet is about 2 tons, the bottom is wooden pallet or iron pallet, and the surrounding is packed with corrugated paper.
6.3. The packaging method of the whole container: 20-23 tons (about 3000 pieces) 20-foot container, 10-12 pallets.
|
|
