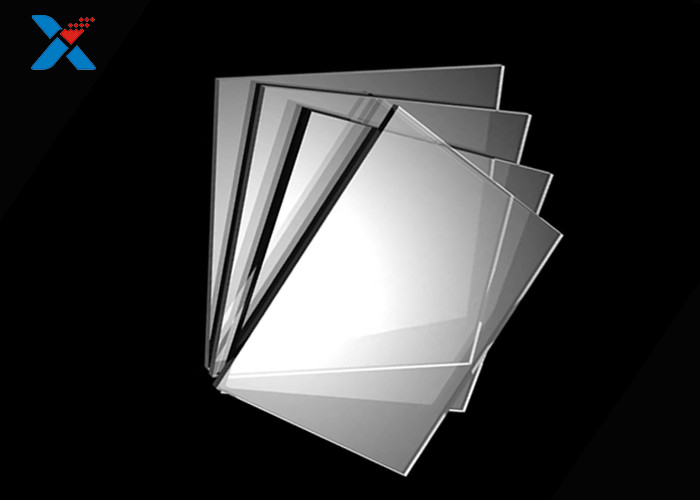

PMMA LGP Dimmable Acrylic Light Guide Plate Custom Cut To Size

PMMA LGP Dimmable Acrylic Light Guide Plate Custom Cut To Size
PMMA LGP Dimmable Acrylic Light Guide Plate Custom Cut To Size PMMA LGP Dimmable Acrylic Light Guide Plate Custom Cut To Size

Large Image :  PMMA LGP Dimmable Acrylic Light Guide Plate Custom Cut To Size

Product Details:
Place of Origin: China, Shenzhen
Brand Name: XH
Certification: ISO FCC
Model Number: XH 00
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: 2.835USD per KG
Packaging Details: 1500kg/Tray
Delivery Time: 7 working days
Payment Terms: T/T, Western Union
Supply Ability: 500000kg/per Month

PMMA LGP Dimmable Acrylic Light Guide Plate Custom Cut To Size

Description
Size: 1220*2440mm, 1220*1830, 2050*3050, 1220*2440mm And So On, Custom Size Density: 1.2g/cm3,
Color: Transparent Packing: PE Film Or Craft Paper On Both Sides
Process Service: Custom Cut To Size,laser Dot,UV Printing Sample Fee: Normal A4 Size Is Free, Just Shipping Fee
High Light:

Dimmable Acrylic Light Guide Plate

,

LGP Acrylic Light Guide Plate

,

PMMA Dimmable Led Light Panel

PMMA LGP Dimmable Acrylic Light Guide Plate Custom Cut To Size



Clear Acrylic Light Guide Plate PMMA LGP dimmable led light panel

1.  Product Description

   The design principle of the light guide plate is derived from the LCD screen of the notebook computer, and it is a high-tech product that converts a linear light source into a surface light source. Optical grade acrylic (PMMA)/PC as the base material, using LCD display and notebook computer backlight module technology, through the high light conductivity of the light guide point, the computer calculates the light guide point, so that the light of the light guide plate is refracted into a The surface light source is manufactured in a uniform light state. The product adopts the principle of spectral analysis combined with digital UV printing technology and is made under constant temperature, constant humidity and dust-free environmental conditions. It has the distinctive features of ultra-thin, ultra-bright, uniform light guide, energy saving, environmental protection, no dark area, durable, not easy to yellow, simple and quick installation and maintenance, etc.



PMMA LGP Dimmable Acrylic Light Guide Plate Custom Cut To Size 0


2.Parameter

Clear acrylic sheet perspex LED light guide panel
Item Place of Origin Guangdong China
Brand Name XH (Acrylic sheet manufacturer)
Model Number XH 00
Material High quality Virgin MMA raw material
Specification Thickness 0.8mm-20mm
Acrylic sheet Size 2440x1220mm, 1220*1830mm, customized
Density 1.2g/cm3
Appearance Color  Red or customized
Surface Double Polished
Process Available Processing Type casted
Process Service Custom Cut to Size,laser dot,UV printing
Sample Sample fee Normal A4 size is free, just shipping fee
Sample Time Normal size, 2days
Customized sample Fee and time will be discussed by both
Supply Capacity Production Ability 50000 Pieces per Month
Stock Regular size stock is sufficient
Lead time 7-10 days after your order
Package Acrylic sheet Covered by PE film or craft paper on double sides
Package Wooden pallet
Package size 2450mm*1250mm*700mm or customized
Package weight About 2000kg per pallet or customized
Trading Terms MOQ 50 Pieces
Main Market All over the world
Shipping Port Shenzhen/Guangzhou Port by Sea
Transportation By sea/ Air/ Express/Railway
Trading Terms FOB, EXW, CIF, CNF, FCA
Payment Terms T/T,Western Union, Paypal
Using Tips Storage Far away from organic solvents
Scratching Sharp objects may scratch the surface
Temperature Long time less than 85℃
Cleaning Clean with soft cloth or scrub with soap

 PMMA LGP Dimmable Acrylic Light Guide Plate Custom Cut To Size 1


3.  Clear Acrylic Light Guide Plate features:

1. Complete physical molding, environmental protection, no silk screen ink
2. The photoelectric conversion rate can reach 80%-90%.
3. High uniformity (90%), laser dots are individually designed for each specification
4. Durable, no light decay, long life, more than 8 years of normal indoor use
5. High weather resistance, more suitable for the harsh climatic conditions of export regions and regions
6. High production efficiency and short lead time. Using imported laser spotting machine, the daily output is 3-5 times that of general light guide plate manufacturers
7. Superior stability. The raw materials of the light guide plate are stable, the production documents are stable, and the machine production is stable


4.  Clear Acrylic Light Guide Plate Application

The light guide plate ultra-thin light box is a new type of advertising carrier (the industry calls it "ultra-thin light box", which is inspired by LCD TVs and draws on the backlight technology of LCD TVs. In fact, it is not a light box. ” is more appropriate, and its characteristics are as follows:
1. The appearance is beautiful, and its thickness is generally less than 3 cm, which maximizes the utilization of space, beautifies the environment, and broadens the scope of application.
2. The bright light output is completely flat and almost perfectly uniform, completely eliminating the light and dark light marks common to ordinary light boxes. Its excellent optical properties are not only widely used in public places, but also expand its application in high-tech fields such as precision display, photography and medical viewing, scientific research, and high-standard lighting. The effect is comparable to that of liquid crystal displays.
3. Its other commendable advantage is energy saving. Due to the use of advanced light guide plate lighting technology, the power consumption is only 23% of the ordinary light box with the same screen area. Calculated on the basis of 10 hours of electricity consumption per day for a light box with a screen area of ​​1M2, the annual power consumption of ordinary light boxes is nearly 900 kWh, and the annual power consumption of ultra-thin light boxes is only 200 kWh, saving 77% of electricity.
4. The special high-brightness and high-quality fluorescent lamp used in the ultra-thin light box has an average service life of more than 8,000 hours; the average service life of the special cold-cathode lamp is more than 15,000 hours. The life of the lamp used in the ultra-thin light box is 5 to 10 times that of the ordinary lamp. The extended service life significantly saves maintenance costs.
5. The ultra-thin light box widely adopts imported high-quality aluminum alloy open-type overall frame structure, equipped with movable hooks or hanging holes, which makes light box installation and screen replacement simple and fast, saving labor, time and money.


PMMA LGP Dimmable Acrylic Light Guide Plate Custom Cut To Size 2

5.  XH Company and Production Line

PMMA LGP Dimmable Acrylic Light Guide Plate Custom Cut To Size 3

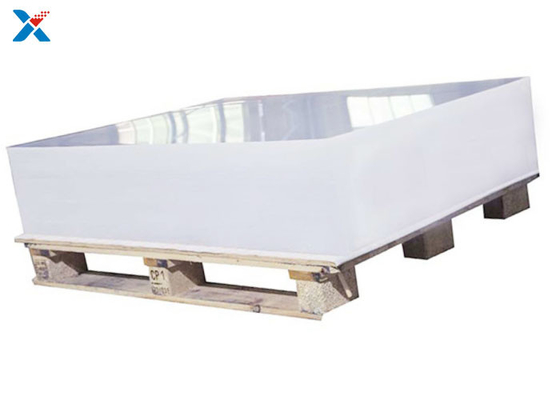

7.  Package and shipping



7.1. One piece of acrylic sheet package: double-sided covered with kraft paper or PE film, the cover film does not have any LOGO of our company.

7.2. Tray package: the total weight of each pallet is about 2 tons, the bottom is wooden pallet or iron pallet, and the surrounding is packed with corrugated paper.

7.3. The packaging method of the whole container: 20-23 tons (about 3000 pieces) 20-foot container, 10-12 pallets.

PMMA LGP Dimmable Acrylic Light Guide Plate Custom Cut To Size 4
