| Brand Name: | XH |
| Model Number: | XH 235 |
| MOQ: | 50pcs |
| Price: | 2.835USD per KG |
| Packaging Details: | 1500kg/Tray |
| Payment Terms: | T/T, Western Union |

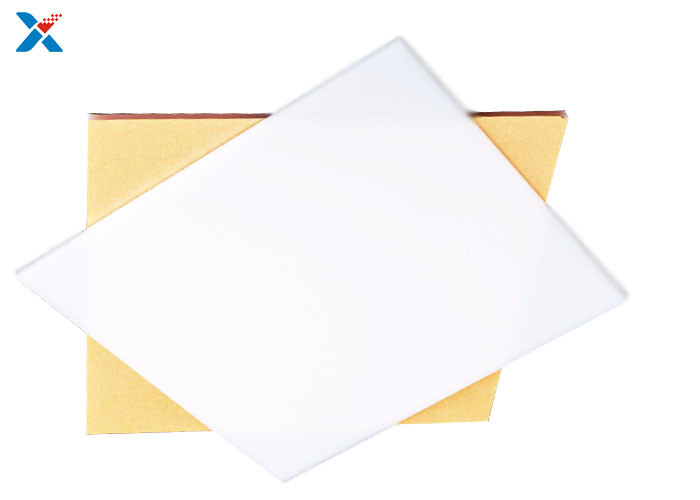

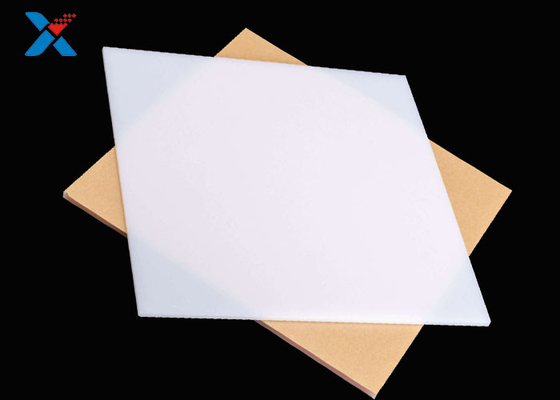

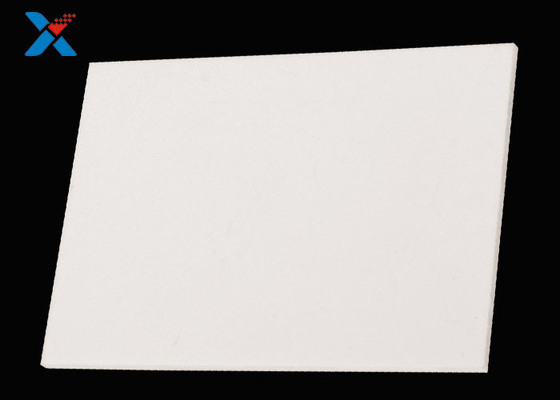

3mm Thin White Plexiglass Acrylic Sheet Custom Cutting Lucite Panels
White Plexiglass Acrylic Sheet 3mm thin large roof extruded lucite panels custom cutting
1. Product Description
Due to the difficulty and high cost of acrylic production, there are many low-quality and cheap substitutes on the market. These substitutes, also known as "acrylic", are actually ordinary organic boards or composite boards (also known as sandwich boards). Ordinary plexiglass is cast with ordinary plexiglass cracking material and pigments. The surface hardness is low, it is easy to fade, and the polishing effect is poor after grinding with fine sand. The composite board only has a thin layer of acrylic on the surface, and the middle is ABS plastic, which is easy to delaminate due to thermal expansion and contraction during use. Real and fake acrylic can be identified from the subtle color difference and polishing effect of the sheet section.
2. Parameter
| Physical Property of Cast Acrylic sheet | |||
|
|
PROPERTY
|
UNIT
|
VALUE
|
|
MECHANICAL
|
Specific Gravity
|
-
|
1.19-1.2
|
|
Roswell Hardness
|
kg/cm 2
|
M-100
|
|
|
Shear Strength
|
kg/cm 2
|
630
|
|
|
Flexural Strength
|
kg/cm 2
|
1050
|
|
|
Tensile Strength
|
kg/cm 2
|
760
|
|
|
Compressive Strength
|
kg/cm 2
|
1260
|
|
|
ELECTRICAL
|
Didlectic Strength
|
Kv/mm
|
20
|
|
Surface Resistivity
|
Ohm
|
> 10 16
|
|
|
THERMAL
|
Specific Heat
|
Cal/grºC
|
0.35
|
|
Coefficient of Thermal Cortductivily
|
Cal/xee/cm/ºC/cm
|
|
|
|
Hot Forming Temp
|
ºC
|
140-180
|
|
|
Hot Defomation Temp
|
ºC
|
100
|
|
|
Thermal Expansion Coefficient
|
Cmfcm/V
|
6×10-5
|
|
|
MISCELLANEOUS
|
Water Absorption(24Hrs)
|
%
|
0.3
|
|
Teste
|
%
|
None
|
|
|
Odor
|
|
|
|
3. How to cut acrylic sheet?
Acrylic products are also very common in our lives. How do acrylic sheets become the various finished products we see in our lives?
1. Cutting:
Laser cutting is a non-contact cutting method. Laser cutting acrylic can cut acrylic into various shapes at will. It can cut characters, patterns, and furniture. The application of laser cutting machine can use acrylic to make various logos, including complex patterns, etc., which has a very important role and status in the advertising industry. Acrylic cutting is the most common process in laser cutting acrylic applications.
2. Punch holes:
Acrylic sheet can also be directly punched. Compared with glass, acrylic has very good machining characteristics. Using a laser cutting machine to punch holes has very high assembly accuracy. You only need to make pictures in the computer. Perforated acrylic.
3. Polishing:
Acrylic sheet itself has high transparency. After polishing the acrylic, it has the same high transparency as crystal. The polished acrylic is very smooth and highly appreciative. It can be used as a variety of handicrafts.
4. Acrylic sheet Application
5. XH Company and Production Line
7. Package and shipping
7.1. One piece of acrylic sheet package: double-sided covered with kraft paper or PE film, the cover film does not have any LOGO of our company.
7.2. Tray package: the total weight of each pallet is about 2 tons, the bottom is wooden pallet or iron pallet, and the surrounding is packed with corrugated paper.
7.3. The packaging method of the whole container: 20-23 tons (about 3000 pieces) 20-foot container, 10-12 pallets.
|
|
