Product Details:
Place of Origin: China, Shenzhen
Brand Name: XH
Certification: ISO FCC
Model Number: XH 00
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: 2.835USD per KG
Packaging Details: 1500kg/Tray
Delivery Time: 7 working days
Payment Terms: T/T, Western Union
Supply Ability: 500000kg/per Month

3mm Clear Acrylic Light Guide Plate Custom Edge Lit LED Light Panels

Description
Size: 1220*2440mm, 1220*1830,Custom Size Density: 1.2g/cm3,
Color: Clear Packing: PE Film Or Craft Paper On Both Sides
Process Service: Custom Cut To Size,laser Dot Cutting Sample Fee: Normal A4 Size Is Free, Just Shipping Fee
High Light:

3mm Acrylic Light Guide Plate

,

Edge Lit Acrylic Light Guide Plate

,

3mm Edge Lit LED Light Panels

3mm Clear Acrylic Light Guide Plate Custom Edge Lit LED Light Panels



3mm clear acrylic light guide plate manufacturers edge lit LED light panels

1.  The development process of Acrylic light guide plate

    Since the 1990s, with the continuous development of science and technology, the production method of light guide plates has been gradually improved, resulting in different and earlier printing production. In contrast, we call it "non-printing".
    Injection Molding
    It fills the molten molding material into a closed mold under high pressure, which requires the light guide plate and the microstructure to be completed simultaneously in injection molding, and the mold must be made quite strong, so the price of the mold is also quite expensive, so it must be Mass production in order to offset the high mold costs. The single-sided microstructure array light guide plate generally adopts the injection molding process, and its bottom texture structure can be in the shape of a micro lens, a microsphere or a tetrahedral corner prism shape.
    photolithography
    The lithography technology is to coat a layer of corrosion-resistant photoresist on a flat silicon wafer, and then let the strong light pass through the lithography plate, and selectively expose on the lithography plate according to the pattern information of the specific layer produced; Then the developed photoresist is removed, and a film with a micro-patterned structure is left on the upper surface of the silicon wafer. The surface roughness of the light guide plate made by photolithography is not good, and the loss of light energy is relatively large.


2.Parameter

PROPERTIES VALUES RULES
Density 1.19 g/cm3 ISO 1183-1:2012 Method A
Rockwell Hardness 112L ISO 2039-2:1999
Tensile Modulus 3150MPa EN ISO 527:2012
Tensile Strength 80.0MPa EN ISO 527:2012
Tensile Strain at Break 3.2% EN ISO 527-1:2012
Water Absorption 0.20% ISO 62:2008 Method 1
Total Luminous Transmittance 93.4% ISO 13468-1:1996
Vicat Softening Temperature 105℃ ISO 306:2013 Method B50
Light Ageing Test- UV Exposure Grey scale: 5 ISO 4892-3:2016 Cycle 1
Mean Coefficient of Linear Thermal Expansion 72×10-6 K-1 ISO 11359-1:2014
Compressive Stress at Yield 129MPa EN ISO 604:2003
Flexural Strength 120MPa ISO 178:2013
Compressive Yield Strength 111MPa ASTM D695-15
Compressive Modulus 3450MPa ASTM D695-15
Shear Strength 59.7MPa ASTM D732-17
Deflection Temperature under Load 100.2℃ ASTM D648-18 Method B
Modulus Elasticity 2810MPa ASTM D695-15

 3mm Clear Acrylic Light Guide Plate Custom Edge Lit LED Light Panels 0

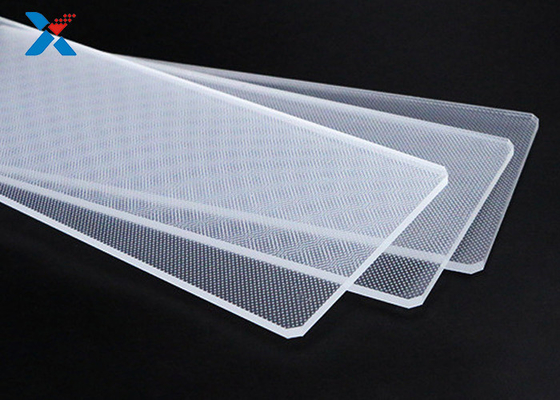

3.  Clear Acrylic Light Guide Plate Shape:

It can be arbitrarily cut into the required size, and can also be used by splicing, the process is simple and the production is convenient;
High light conversion rate (more than 30% higher than traditional boards), uniform light, long service life, can be used normally indoors for more than 8 years, safe and environmentally friendly, durable and reliable, and can be used indoors and outdoors;
Under the same area of luminous brightness, the luminous efficiency is high and the power consumption is low;

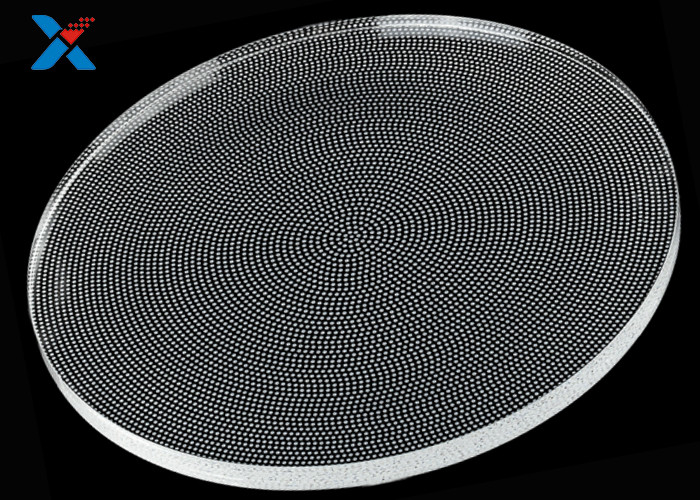

Can be made into special shapes, such as circles, ellipses, arcs, triangles, etc.;
Under the same brightness, thinner products can be used to save costs;

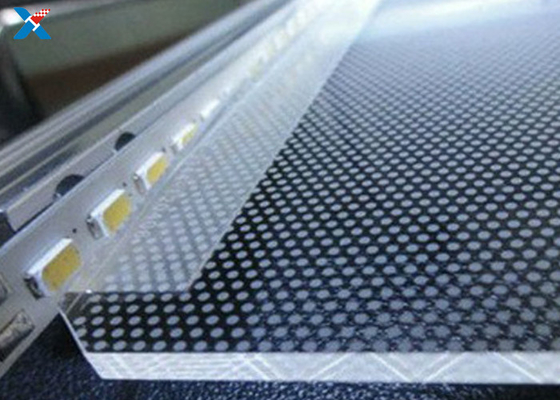

You can use any light source, point line light source for surface light source conversion, the light source includes LED CCFL (cold cathode lamp), fluorescent tube, etc.


4.  What is the relationship between the acrylic light guide plate and the acrylic plate?

     The light guide plate is made of optical-grade acrylic sheet, and then uses high-tech materials with extremely high reflectivity and no light absorption to print light-guiding points on the bottom surface of the optical-grade acrylic sheet with UV screen printing technology.
     The main material of the acrylic light guide plate is optical acrylic plate. The quality of the acrylic light guide plates currently produced is also different due to the different processes of different manufacturers. In particular, although the price of the recycled board is cheap, it is easy to yellow and the light transmittance is also poor. The production of acrylic light guide plate should not be easy to yellow and transmit light.              Transparent board with a rate of 92%-93%.
    At present, the light guide plates on the market are made of two materials: acrylic sheet and PC sheet. However, the most common light guide plate is made of acrylic board material. There are fewer light guide plates made of PC board material, and they have to be specially customized, and not every manufacturer of light guide plates does it.


3mm Clear Acrylic Light Guide Plate Custom Edge Lit LED Light Panels 1

5.  XH Company and Production Line

3mm Clear Acrylic Light Guide Plate Custom Edge Lit LED Light Panels 2



7.  Package and shipping



7.1. One piece of acrylic sheet package: double-sided covered with kraft paper or PE film, the cover film does not have any LOGO of our company.

7.2. Tray package: the total weight of each pallet is about 2 tons, the bottom is wooden pallet or iron pallet, and the surrounding is packed with corrugated paper.

7.3. The packaging method of the whole container: 20-23 tons (about 3000 pieces) 20-foot container, 10-12 pallets.

3mm Clear Acrylic Light Guide Plate Custom Edge Lit LED Light Panels 3
