Transparent LGP Acrylic Sheet LED Panel Large Size Plexiglass Sheets

Transparent LGP Acrylic Sheet LED Panel Large Size Plexiglass Sheets
Transparent LGP Acrylic Sheet LED Panel Large Size Plexiglass Sheets Transparent LGP Acrylic Sheet LED Panel Large Size Plexiglass Sheets Transparent LGP Acrylic Sheet LED Panel Large Size Plexiglass Sheets

Large Image :  Transparent LGP Acrylic Sheet LED Panel Large Size Plexiglass Sheets

Product Details:
Place of Origin: China, Shenzhen
Brand Name: XH
Certification: ISO FCC
Model Number: XH 00
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: 2.835USD per KG
Packaging Details: 1500kg/Tray
Delivery Time: 7 working days
Payment Terms: T/T, Western Union
Supply Ability: 500000kg/per Month

Transparent LGP Acrylic Sheet LED Panel Large Size Plexiglass Sheets

Description
Size: 1220*2440mm, 1220*1830,Custom Size Density: 1.2g/cm3,
Color: Transparent Packing: PE Film Or Craft Paper On Both Sides
Process Service: Custom Cut To Size,laser Dot Cutting Sample Fee: Normal A4 Size Is Free, Just Shipping Fee
High Light:

Transparent LGP Acrylic Sheet

,

Acrylic LGP LED Panel

,

LGP Acrylic Sheet LED Panel

Transparent LGP Acrylic Sheet LED Panel Large Size Plexiglass Sheets

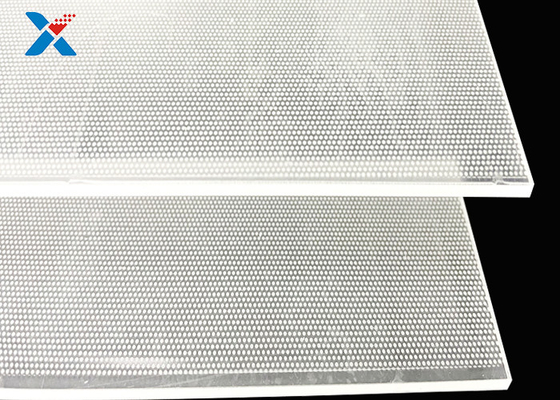

Transparent acrylic light guide plate large size thin LGP plexi glass sheets

1.   Acrylic light guide plate Engraving process characteristics
     1. Long service life. Engraving is a physical process, and the service life of the light guide plate is mainly related to the quality of the plexiglass substrate. Printing plates tend not to be used for long periods of time. For example, most of the printed board ultra-thin light boxes that have been used in Beijing subway stations for less than 2 years have experienced a serious decline in light conductivity.
     2. Light guide is more uniform. When the width of the engraved light guide plate is 1.2M, the light guide uniformity can still reach more than 80%.
    3. The light guide effect is better and the performance is more stable. In the case of the same thickness, the light guide effect of the engraved light guide plate is obviously better than that of the printed board. Especially in large format, the light guide rate is better and the performance is more stable. When the width of the 10MM thick engraving light guide plate reaches the target width of 1.2M, using a 30WT5 light source, the surface illumination can reach more than 2000LUX.
     4. Adopt a flexible process. Each specification of the printed light guide plate must be made separately, and the finished product cannot be cut at will, so there are shortcomings in application. The laser light guide plate can be made in full plate, cut and used at will, or can be made into a special plate of individual specifications. For products with large production volume but many specifications, such as luminous signs, the advantages are obvious.




2.Parameter

PROPERTIES VALUES RULES
Density 1.19 g/cm3 ISO 1183-1:2012 Method A
Rockwell Hardness 112L ISO 2039-2:1999
Tensile Modulus 3150MPa EN ISO 527:2012
Tensile Strength 80.0MPa EN ISO 527:2012
Tensile Strain at Break 3.2% EN ISO 527-1:2012
Water Absorption 0.20% ISO 62:2008 Method 1
Total Luminous Transmittance 93.4% ISO 13468-1:1996
Vicat Softening Temperature 105℃ ISO 306:2013 Method B50
Light Ageing Test- UV Exposure Grey scale: 5 ISO 4892-3:2016 Cycle 1
Mean Coefficient of Linear Thermal Expansion 72×10-6 K-1 ISO 11359-1:2014
Compressive Stress at Yield 129MPa EN ISO 604:2003
Flexural Strength 120MPa ISO 178:2013
Compressive Yield Strength 111MPa ASTM D695-15
Compressive Modulus 3450MPa ASTM D695-15
Shear Strength 59.7MPa ASTM D732-17
Deflection Temperature under Load 100.2℃ ASTM D648-18 Method B
Modulus Elasticity 2810MPa ASTM D695-15

 Transparent LGP Acrylic Sheet LED Panel Large Size Plexiglass Sheets 0

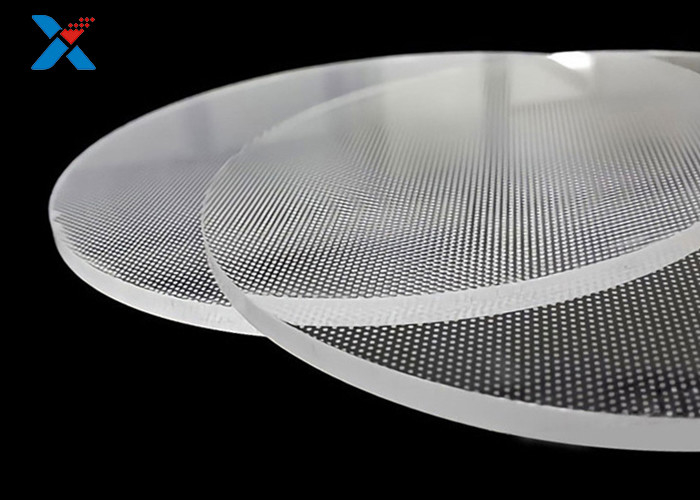

3.  Clear Acrylic Light Guide Plate Laser Dot Advantages
     Compared with the traditional engraving light guide plate (precision mechanical scribing method), it has obvious and significant advantages.

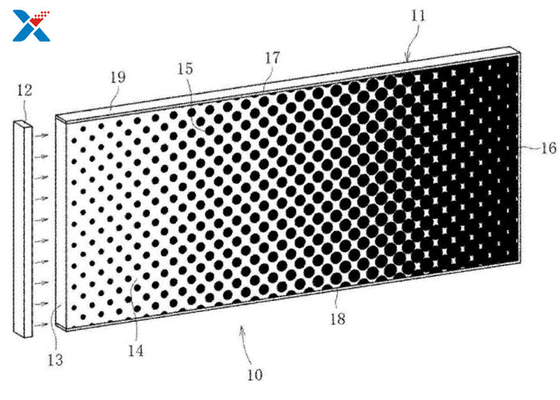

     1. The light guide point design is more reasonable. Combine different acrylic materials. Different ways of use use different laser network solutions. Both uniform and uniform laser dot layout can be used. You can also make network layouts of different sizes according to different specifications and ways of use. To achieve the perfect unity of commonality and exclusivity.
     2. The light guide is more uniform and the evenness is higher. Different acrylic materials and personalized dot design make the light guide even higher, and the light evenness can reach 90% or more. Overall very uniform.
     3. Personalized network design, better effect. Effective use of dense reflections from surrounding small points.


4.  What is the relationship between the acrylic light guide plate and the acrylic plate?

     The light guide plate is made of optical-grade acrylic sheet, and then uses high-tech materials with extremely high reflectivity and no light absorption to print light-guiding points on the bottom surface of the optical-grade acrylic sheet with UV screen printing technology.
     The main material of the acrylic light guide plate is optical acrylic plate. The quality of the acrylic light guide plates currently produced is also different due to the different processes of different manufacturers. In particular, although the price of the recycled board is cheap, it is easy to yellow and the light transmittance is also poor. The production of acrylic light guide plate should not be easy to yellow and transmit light.              Transparent board with a rate of 92%-93%.
    At present, the light guide plates on the market are made of two materials: acrylic sheet and PC sheet. However, the most common light guide plate is made of acrylic board material. There are fewer light guide plates made of PC board material, and they have to be specially customized, and not every manufacturer of light guide plates does it.


Transparent LGP Acrylic Sheet LED Panel Large Size Plexiglass Sheets 1

5.  XH Company and Production Line

Transparent LGP Acrylic Sheet LED Panel Large Size Plexiglass Sheets 2



7.  Package and shipping



7.1. One piece of acrylic sheet package: double-sided covered with kraft paper or PE film, the cover film does not have any LOGO of our company.

7.2. Tray package: the total weight of each pallet is about 2 tons, the bottom is wooden pallet or iron pallet, and the surrounding is packed with corrugated paper.

7.3. The packaging method of the whole container: 20-23 tons (about 3000 pieces) 20-foot container, 10-12 pallets.

Transparent LGP Acrylic Sheet LED Panel Large Size Plexiglass Sheets 3
