1.5mm Acrylic Diffuser Panels Frosted LED Light Diffusing Plastic Sheet

Certification
China Shenzhen XH Technology Co., Ltd. certification
I'm Online Chat Now

1.5mm Acrylic Diffuser Panels Frosted LED Light Diffusing Plastic Sheet

1.5mm Acrylic Diffuser Panels Frosted LED Light Diffusing Plastic Sheet
1.5mm Acrylic Diffuser Panels Frosted LED Light Diffusing Plastic Sheet 1.5mm Acrylic Diffuser Panels Frosted LED Light Diffusing Plastic Sheet 1.5mm Acrylic Diffuser Panels Frosted LED Light Diffusing Plastic Sheet

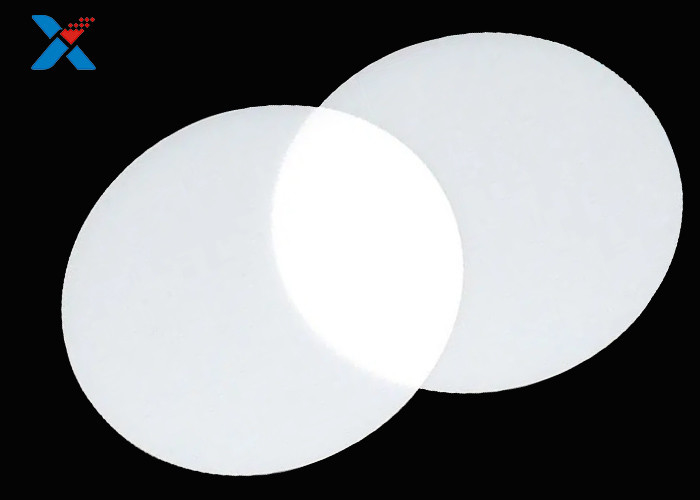

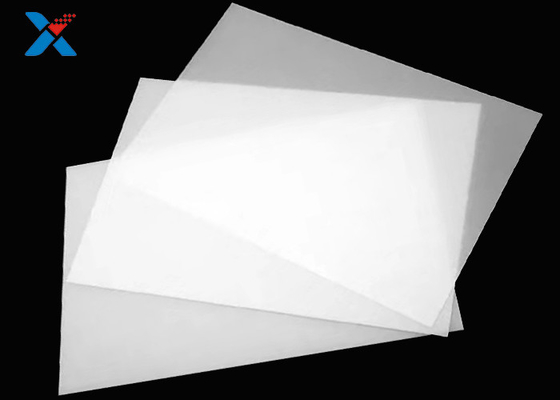

Large Image :  1.5mm Acrylic Diffuser Panels Frosted LED Light Diffusing Plastic Sheet

Product Details:
Place of Origin: China, Shenzhen
Brand Name: XH
Certification: ISO FCC
Model Number: XH 22
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: 2.835USD per KG
Packaging Details: 1500kg/Tray
Delivery Time: 7 working days
Payment Terms: T/T, Western Union
Supply Ability: 500000kg/per Month

1.5mm Acrylic Diffuser Panels Frosted LED Light Diffusing Plastic Sheet

Description
Size: 1220*2440mm, 1220*1830, Custom Size Density: 1.2g/cm3,
Color: Clear Milk White Surface: Matte/frosted
Material: High Quality Virgin MMA Raw Material Processing Type: Extruded
High Light:

1.5mm Acrylic Diffuser Panels

,

1.5mm Plastic Light Diffuser Panel

,

1.5mm Light Diffusing Plastic Sheet

1.5mm Acrylic Diffuser Panels Frosted LED Light Diffusing Plastic Sheet



1.5mm Acrylic diffuser sheet LED light frosted plexi glass board cut to size

1.  Product Description
   Acrylic diffuser plate, also called (polymethyl methacrylate, alias acrylic, acrylic, plexiglass), is a material with light diffusing properties, which is PS (polystyrene), PC (polycarbonate) ), PP (polypropylene) and other material diffuser plate categories, with high haze, high light transmittance, high diffusivity and other optical characteristics of plastic plates, can effectively convert point or line light sources into soft and uniform The surface light source, on the premise of achieving good light transmittance, has good light source lattice shading at the same time, it is an ideal optical material to solve the secondary light distribution of LED lighting products, and it is the best light diffusing material for LED lighting products. .
1.5mm Acrylic Diffuser Panels Frosted LED Light Diffusing Plastic Sheet 0

2.Parameter

Process Available Processing Type Extruded
Process Service Custom Cut to Size,laser dot,UV printing
Sample Sample fee Normal A4 size is free, just shipping fee
Sample Time Normal size, 2days
Customized sample Fee and time will be discussed by both
Supply Capacity Production Ability 50000 Pieces per Month
Stock Regular size stock is sufficient
Lead time 7-10 days after your order
Package Acrylic sheet Covered by PE film or craft paper on double sides
Package Wooden pallet
Package size 2450mm*1250mm*700mm or customized
Package weight About 2000kg per pallet or customized
Trading Terms MOQ 50 Pieces
Main Market All over the world
Shipping Port Shenzhen/Guangzhou Port by Sea
Transportation By sea/ Air/ Express/Railway
Trading Terms FOB, EXW, CIF, CNF, FCA
Payment Terms T/T,Western Union, Paypal
Using Tips Storage Far away from organic solvents
Scratching Sharp objects may scratch the surface
Temperature Long time less than 85℃
Cleaning Clean with soft cloth or scrub with soap


3.  New Microstructure Acrylic Diffuser Plate​:

     The new microstructured acrylic diffuser is arranged in an array of microfeatures on its surface, so that the light is refracted in different directions when it passes through, changing the light's travel route, realizing the sufficient dispersion of the incident light, and achieving a softer and more uniform irradiation effect. Common micro-specialty structures include the following:
A, V-groove array
B, U-shaped convex groove array
C, pyramid array
D, circular array
E, microlens array
The microstructure acrylic diffuser has high transmittance. By changing the shape and different arrangement of the microstructure, the diffusion angle, the space and energy distribution of the light field can be adjusted, and the effect on the uniformity and light transmittance of the light diffuser can be realized. Therefore, it has attracted the attention of researchers.

 1.5mm Acrylic Diffuser Panels Frosted LED Light Diffusing Plastic Sheet 1
4.  Acrylic light diffusion sheet Application

    Acrylic diffusers are widely used in the field of lighting due to their obvious comprehensive performance advantages, mainly reflected in LED flat light panels, LED downlights, grille lights, ceiling light masks, advertising light boxes, signs and other products.


1.5mm Acrylic Diffuser Panels Frosted LED Light Diffusing Plastic Sheet 2

5.  XH Company and Production Line

1.5mm Acrylic Diffuser Panels Frosted LED Light Diffusing Plastic Sheet 3



7.  Package and shipping

  One piece of acrylic sheet package: double-sided covered with kraft paper or PE film, the cover film does not have any LOGO of our company.
  7.2. Tray package: the total weight of each pallet is about 2 tons, the bottom is wooden pallet or iron pallet, and the surrounding is packed with corrugated paper.
  7.3. The packaging method of the whole container: 20-23 tons (about 3000 pieces) 20-foot container, 10-12 pallets.



1.5mm Acrylic Diffuser Panels Frosted LED Light Diffusing Plastic Sheet 4
