1mm Acrylic Diffuser Sheet

1mm Acrylic Diffuser Sheet
1mm Acrylic Diffuser Sheet 1mm Acrylic Diffuser Sheet 1mm Acrylic Diffuser Sheet

Large Image :  1mm Acrylic Diffuser Sheet

Product Details:
Place of Origin: China, Shenzhen
Brand Name: XH
Certification: ISO FCC
Model Number: XH 22
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: 2.835USD per KG
Packaging Details: 1500kg/Tray
Delivery Time: 7 working days
Payment Terms: T/T, Western Union
Supply Ability: 500000kg/per Month

1mm Acrylic Diffuser Sheet

Description
Size: 1220*2440mm, 1220*1830, Custom Size Density: 1.2g/cm3,
Color: Clear Milk White Surface: Matte/frosted
Material: High Quality Virgin MMA Raw Material Processing Type: Extruded
High Light:

1mm Acrylic Diffuser Sheet

,

Frosted Acrylic Diffuser Sheet

,

1mm Frosted Plastic Sheet

1mm Acrylic Diffuser Sheet



1mm Acrylic diffuser sheet custom LED light frosted clear plastic PMMA plate

1.  Product Description

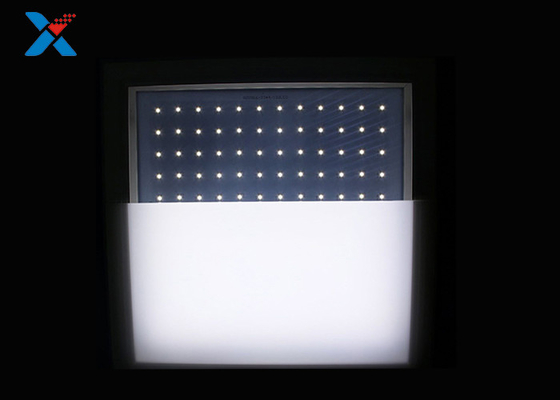

    The biggest feature of the acrylic diffuser sheet is that it causes a lot of interference to the light. No matter how many degrees the light distribution curve of the original design is, as long as the light passes through the diffuser, it will change the beam angle to 160~176°. There is a foggy feeling on the board surface. From this point, it can be proved that the beam angle is as large as 160~176°. The best proof is that the larger the beam angle, the lower the illumination, and some will filter light, so that some wavelengths cannot be penetrated. , resulting in color shift, such as re-light interference treatment on the surface (for example: sanding, embossing), the light transmittance is even lower due to the natural phenomenon of geometric optics, so the base material used to make the diffuser plate should choose the refractive index The lower the better, the lower the interference with light.
1mm Acrylic Diffuser Sheet 0

2.Parameter

Process Available Processing Type Extruded
Process Service Custom Cut to Size,laser dot,UV printing
Sample Sample fee Normal A4 size is free, just shipping fee
Sample Time Normal size, 2days
Customized sample Fee and time will be discussed by both
Supply Capacity Production Ability 50000 Pieces per Month
Stock Regular size stock is sufficient
Lead time 7-10 days after your order
Package Acrylic sheet Covered by PE film or craft paper on double sides
Package Wooden pallet
Package size 2450mm*1250mm*700mm or customized
Package weight About 2000kg per pallet or customized
Trading Terms MOQ 50 Pieces
Main Market All over the world
Shipping Port Shenzhen/Guangzhou Port by Sea
Transportation By sea/ Air/ Express/Railway
Trading Terms FOB, EXW, CIF, CNF, FCA
Payment Terms T/T,Western Union, Paypal
Using Tips Storage Far away from organic solvents
Scratching Sharp objects may scratch the surface
Temperature Long time less than 85℃
Cleaning Clean with soft cloth or scrub with soap



Technical indicators
Property Detection method Unit Technical index
Specific gravity ASTMD792 ---- 1.2
Charpy impact strength ASTMD256 KL/㎡ ≥16
Elongation at break ASTMD638 % ≥2
Tensile yield stress ASTMD638 MPa ≥66
Thermal deformation temperature GB1634 ℃ ≥85
Longitudinal shrinkage WZ-YF-JYQB-025 % ≤5
Lateral elongation rate WZ-YF-JYQB-025 % ≤3
Water absorption rate GB1638 % ≤0.3%
Light transmittance haze test instrument % 60%-90% (range adjustable)
Haze (reference) haze test instrument % 88%-98% (range adjustable)
1mm Acrylic Diffuser Sheet 1



3.  Optical eigenvalues
     Generally, for the quality control of optical properties of transparent and translucent plastics such as plate, sheet, film, and tube, the indicators such as transmittance and haze are mainly evaluated by testing. Our country was proposed by the former Ministry of Chemical Industry of the People's Republic of my country, drafted by the former Ministry of Chemical Industry Chenguang Chemical Research Institute and other units, and issued by the State Administration of Standards. ". which are defined as follows:
    1. Light transmittance—the ratio of the luminous flux (Luminous Flux) passing through the sample to the luminous flux hitting the sample, expressed as a percentage.
    2. Haze—the ratio of the scattered luminous flux deviating from the incident light direction through the sample to the transmitted luminous flux, expressed as a percentage (for this method, only the scattered luminous flux deviating from the incident light direction by more than 2.5 degrees is used to calculate the haze) . The cloudy or cloudy appearance of the interior or surface of a transparent or translucent material due to light scattering. Expressed as a percentage of the ratio of the scattered luminous flux to the luminous flux transmitted through the material. It is an important parameter for the optical transparency of transparent or translucent materials.
    3. Refractive index-----no matter how your transmittance or haze changes, it has already determined its optics in terms of quality (density). The higher the refractive index, the lower the transmittance, which has nothing to do with thickness. Both light transmittance and haze are indicators to measure the transparency of materials, which are not necessarily applicable to diffusers. Generally speaking, there is an inverse relationship between light transmittance and haze, and vice versa.


4.  Acrylic light diffusion sheet Application

    Advertising light boxes, billboards, outdoor billboards
    Stage special effects, LED electronic display, etc.


1mm Acrylic Diffuser Sheet 2

5.  XH Company and Production Line

1mm Acrylic Diffuser Sheet 3



7.  Package and shipping

  One piece of acrylic sheet package: double-sided covered with kraft paper or PE film, the cover film does not have any LOGO of our company.
  7.2. Tray package: the total weight of each pallet is about 2 tons, the bottom is wooden pallet or iron pallet, and the surrounding is packed with corrugated paper.
  7.3. The packaging method of the whole container: 20-23 tons (about 3000 pieces) 20-foot container, 10-12 pallets.



1mm Acrylic Diffuser Sheet 4
