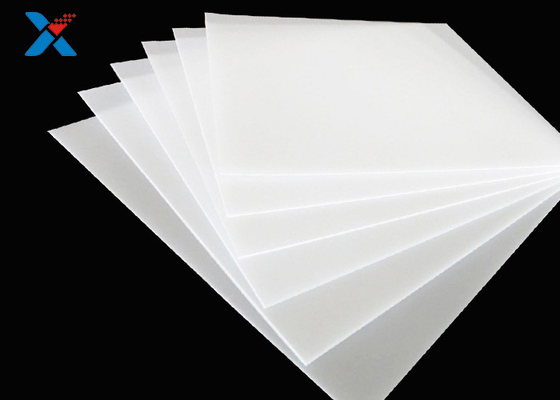

1mm Light Acrylic Diffuser Sheet Matte Perspex Panels Custom Cutting

Certification
China Shenzhen XH Technology Co., Ltd. certification
I'm Online Chat Now

1mm Light Acrylic Diffuser Sheet Matte Perspex Panels Custom Cutting

1mm Light Acrylic Diffuser Sheet Matte Perspex Panels Custom Cutting
1mm Light Acrylic Diffuser Sheet Matte Perspex Panels Custom Cutting 1mm Light Acrylic Diffuser Sheet Matte Perspex Panels Custom Cutting 1mm Light Acrylic Diffuser Sheet Matte Perspex Panels Custom Cutting

Large Image :  1mm Light Acrylic Diffuser Sheet Matte Perspex Panels Custom Cutting

Product Details:
Place of Origin: China, Shenzhen
Brand Name: XH
Certification: ISO FCC
Model Number: XH 22
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: 2.835USD per KG
Packaging Details: 1500kg/Tray
Delivery Time: 7 working days
Payment Terms: T/T, Western Union
Supply Ability: 500000kg/per Month

1mm Light Acrylic Diffuser Sheet Matte Perspex Panels Custom Cutting

Description
Size: 1220*2440mm, 1220*1830, Custom Size Density: 1.2g/cm3,

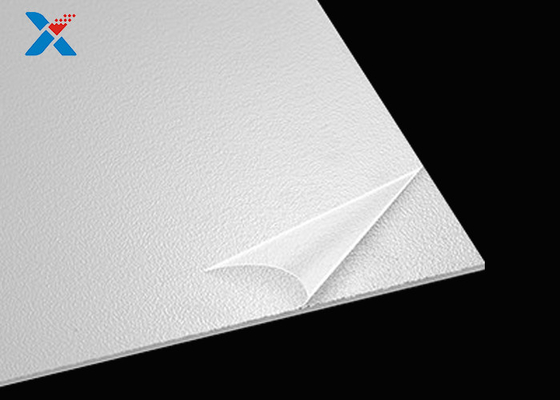

Color: Clear Milk White Surface: Matte/frosted
Material: High Quality Virgin MMA Raw Material Processing Type: Extruded
High Light:

1mm Light Acrylic Diffuser Sheet

,

Perspex Acrylic Diffuser Sheet

,

1mm LED Light Diffusing Acrylic Sheet

1mm Light Acrylic Diffuser Sheet Matte Perspex Panels Custom Cutting



1mm Acrylic diffuser sheet LED light matte Perspex panels custom cutting

1.  Product Description
     The light acrylic diffuser is a physical phenomenon of refraction, reflection and scattering that occurs when the light encounters two media with different refractive indices (density) on the way through chemical or physical means. , Inorganic or organic light diffusing agents are added to the base of substrates such as hips, or the light is adjusted artificially through the array arrangement of the micro-features on the surface of the substrate, so that the light is refracted, reflected, and scattered in different directions, thereby changing the light travel route. , to achieve sufficient dispersion of incident light to produce the effect of optical diffusion, there are three types of light diffusion plates. Generally widely used in liquid crystal display and LED lighting and imaging display systems.


1mm Light Acrylic Diffuser Sheet Matte Perspex Panels Custom Cutting 0

2.Parameter

Process Available Processing Type Extruded
Process Service Custom Cut to Size,laser dot,UV printing
Sample Sample fee Normal A4 size is free, just shipping fee
Sample Time Normal size, 2days
Customized sample Fee and time will be discussed by both
Supply Capacity Production Ability 50000 Pieces per Month
Stock Regular size stock is sufficient
Lead time 7-10 days after your order
Package Acrylic sheet Covered by PE film or craft paper on double sides
Package Wooden pallet
Package size 2450mm*1250mm*700mm or customized
Package weight About 2000kg per pallet or customized
Trading Terms MOQ 50 Pieces
Main Market All over the world
Shipping Port Shenzhen/Guangzhou Port by Sea
Transportation By sea/ Air/ Express/Railway
Trading Terms FOB, EXW, CIF, CNF, FCA
Payment Terms T/T,Western Union, Paypal
Using Tips Storage Far away from organic solvents
Scratching Sharp objects may scratch the surface
Temperature Long time less than 85℃
Cleaning Clean with soft cloth or scrub with soap

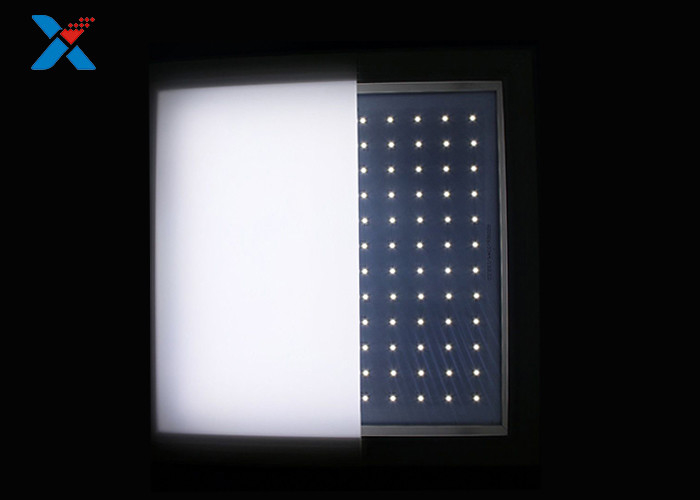

Considerations for LED lighting:
1. The best light mixing performance: high light softness
2. High light transmission performance: reduce energy consumption and improve the illumination of lamps
3. Small influence on the light source: maintain the consistency of the color rendering of the light source and reduce the color shift
4. Minimize light interference: keep the design of the original light distribution curve of the lamps
1mm Light Acrylic Diffuser Sheet Matte Perspex Panels Custom Cutting 1



3.  Optical eigenvalues
     Generally, for the quality control of optical properties of transparent and translucent plastics such as plate, sheet, film, and tube, the indicators such as transmittance and haze are mainly evaluated by testing. Our country was proposed by the former Ministry of Chemical Industry of the People's Republic of my country, drafted by the former Ministry of Chemical Industry Chenguang Chemical Research Institute and other units, and issued by the State Administration of Standards. ". which are defined as follows:
    1. Light transmittance—the ratio of the luminous flux (Luminous Flux) passing through the sample to the luminous flux hitting the sample, expressed as a percentage.
    2. Haze—the ratio of the scattered luminous flux deviating from the incident light direction through the sample to the transmitted luminous flux, expressed as a percentage (for this method, only the scattered luminous flux deviating from the incident light direction by more than 2.5 degrees is used to calculate the haze) . The cloudy or cloudy appearance of the interior or surface of a transparent or translucent material due to light scattering. Expressed as a percentage of the ratio of the scattered luminous flux to the luminous flux transmitted through the material. It is an important parameter for the optical transparency of transparent or translucent materials.
    3. Refractive index-----no matter how your transmittance or haze changes, it has already determined its optics in terms of quality (density). The higher the refractive index, the lower the transmittance, which has nothing to do with thickness. Both light transmittance and haze are indicators to measure the transparency of materials, which are not necessarily applicable to diffusers. Generally speaking, there is an inverse relationship between light transmittance and haze, and vice versa.


4.  Acrylic light diffusion sheet Application

    Advertising light boxes, billboards, outdoor billboards
    Stage special effects, LED electronic display, etc.


1mm Light Acrylic Diffuser Sheet Matte Perspex Panels Custom Cutting 2

5.  XH Company and Production Line

1mm Light Acrylic Diffuser Sheet Matte Perspex Panels Custom Cutting 3



7.  Package and shipping

  One piece of acrylic sheet package: double-sided covered with kraft paper or PE film, the cover film does not have any LOGO of our company.
  7.2. Tray package: the total weight of each pallet is about 2 tons, the bottom is wooden pallet or iron pallet, and the surrounding is packed with corrugated paper.
  7.3. The packaging method of the whole container: 20-23 tons (about 3000 pieces) 20-foot container, 10-12 pallets.



1mm Light Acrylic Diffuser Sheet Matte Perspex Panels Custom Cutting 4
