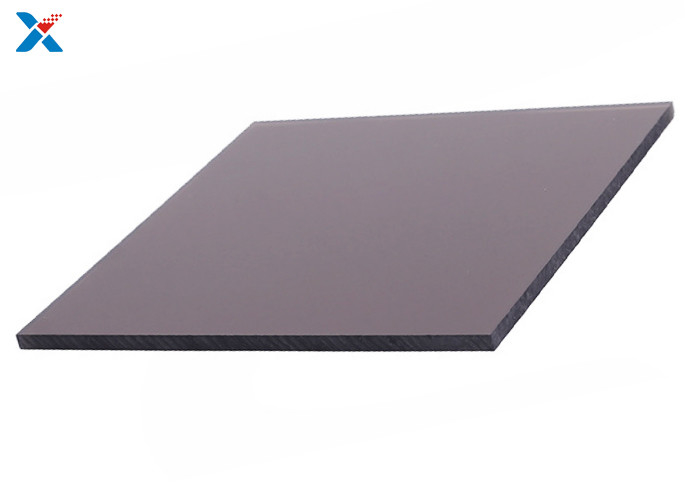

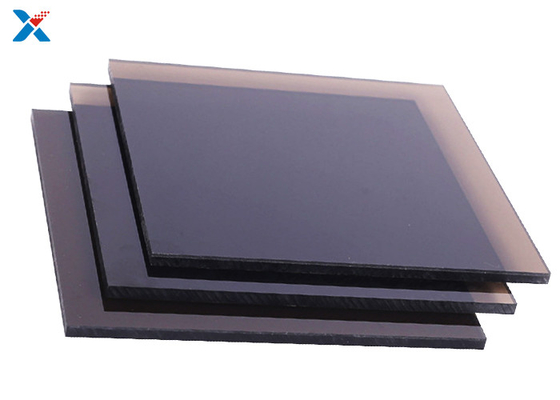

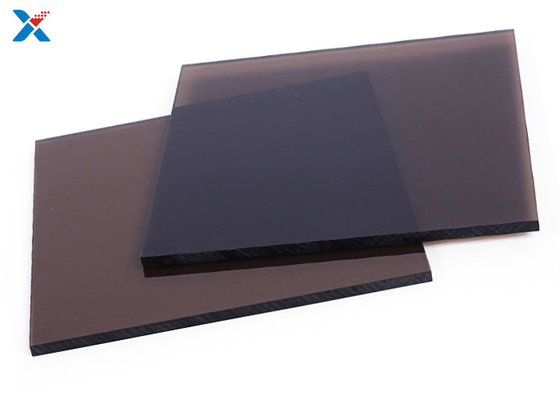

Smoke Gray Transparent Solid Polycarbonate Panel Plastic Roofing Sheet

Certification
China Shenzhen XH Technology Co., Ltd. certification
I'm Online Chat Now

Smoke Gray Transparent Solid Polycarbonate Panel Plastic Roofing Sheet

Smoke Gray Transparent Solid Polycarbonate Panel Plastic Roofing Sheet
Smoke Gray Transparent Solid Polycarbonate Panel Plastic Roofing Sheet Smoke Gray Transparent Solid Polycarbonate Panel Plastic Roofing Sheet Smoke Gray Transparent Solid Polycarbonate Panel Plastic Roofing Sheet

Large Image :  Smoke Gray Transparent Solid Polycarbonate Panel Plastic Roofing Sheet

Product Details:
Place of Origin: China, Shenzhen
Brand Name: XH
Certification: ISO FCC
Model Number: XH 99
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: 2.835USD per KG
Packaging Details: 1500kg/Tray
Delivery Time: 7 working days
Payment Terms: T/T, Western Union
Supply Ability: 500000kg/per Month

Smoke Gray Transparent Solid Polycarbonate Panel Plastic Roofing Sheet

Description
Size: 1220*2440mm, 1220*1830, Custom Size Density: 1.2g/cm3,
Color: Black ,Clear, Blue, Bronze, Green,opal Surface: Double Polished
Processing Type: Co-extrusion Sample Fee: Normal A4 Size Is Free, Just Shipping Fee
High Light:

Transparent Solid Polycarbonate Panel

,

Smoke Gray Solid Polycarbonate Panel

,

1220*2440mm Transparent Roofing Sheet

Smoke Gray Transparent Solid Polycarbonate Panel Plastic Roofing Sheet



smoke gray transparent Solid polycarbonate sheet PC plastic panels DIY crafts


1.  Polycarbonate Sheet Production Process

     PC solid sheet and sunlight sheet are made of polymer engineering plastic polycarbonate (POLYCARBONATE) referred to as PC as the main raw material, with anti-ultraviolet UV added inside, and co-extruded by introducing advanced technology from Europe.
PC solid sheet and sunlight sheet have been unanimously recognized by the building decoration industry for their excellent physical, mechanical, electrical and thermal properties. The products are exported to all parts of the country, adding a beautiful scenery line to people's living space.

Smoke Gray Transparent Solid Polycarbonate Panel Plastic Roofing Sheet 0



2.  Parameter

Proudction Method Co extrusion
Material : Polycarbonate Granule ; UV inhibitor
Color Clear, blue, bronze, green,opal
Light transmittance 50%--87%
Purpose General
Appearance Smooth
UV exposure UV protection
Thickness 1.5mm, 2.0mm, 3.0mm, 4.0mm, 6.0mm, 8.0mm, 10mm, 12mm, 16mm
Width 1220mm to 2100mm
Length For thickness 1.5mm to 5.0mm : max. 30.5m/roll ; For thickness5.0mm to 16mm : max.5.8m



3.  Clear polycarbonate sheet features:

     Polycarbonate (PC) solar panels have the following performance characteristics:
1. Flame retardant: The national standard GB50222-95 confirms that the PC board is a flame retardant grade 1, that is, B1 grade. The ignition point of the PC board is 580 °C, and it will self-extinguish after leaving the fire. No toxic gas will be produced when burning, and it will not contribute to the spread of the fire.
2. Bendability: According to the design drawing, the cold bending method can be adopted on the construction site, and it can be installed into an arch, semi-circular top and window. The minimum bending radius is 175 times the thickness of the plate, and it can also be hot bent.
3. Sound insulation: Polycarbonate solar panel has obvious sound insulation effect, and has better sound insulation than glass and sub-afterburner of the same thickness. Under the conditions of the same thickness, the sound insulation of PC board is 3-4DB higher than that of glass. . Internationally, it is the material of choice for highway noise barriers.
4. Energy-saving: keep cool in summer, keep warm in winter, polycarbonate sunshine board has lower thermal conductivity (K value) than ordinary glass and other plastics, and the thermal insulation effect is 7%-25% higher than that of the same glass, PC board thermal insulation up to 49%. Therefore, the heat loss is greatly reduced, and it is an environmentally friendly material for buildings with heating equipment.

 Smoke Gray Transparent Solid Polycarbonate Panel Plastic Roofing Sheet 1


4.  Clear polycarbonate sheet Application

Gardens, amusement places strange decoration and corridor pavilions of resting places;
Interior and exterior decoration of commercial buildings, curtain walls of modern urban buildings;
Aviation transparent containers, motorcycle front windshields, airplanes, trains, ships, automobiles, motorboats, submarines and glass military police shields;
Layout of telephone booths, advertising street signs, light box advertisements, and exhibitions;
Instruments, meters, high and low voltage switch cabinet panels and military industries;
High-grade interior decoration materials such as walls, ceilings and screens;
Noise barriers for highways and urban elevated roads;
Agricultural greenhouses and breeding greenhouses;
Modern ecological restaurant ceiling;



5.  XH Company and Production Line

Smoke Gray Transparent Solid Polycarbonate Panel Plastic Roofing Sheet 2



7.  Package and shipping



7.1. One piece of acrylic sheet package: double-sided covered with kraft paper or PE film, the cover film does not have any LOGO of our company.

7.2. Tray package: the total weight of each pallet is about 2 tons, the bottom is wooden pallet or iron pallet, and the surrounding is packed with corrugated paper.

7.3. The packaging method of the whole container: 20-23 tons (about 3000 pieces) 20-foot container, 10-12 pallets.

Smoke Gray Transparent Solid Polycarbonate Panel Plastic Roofing Sheet 3
