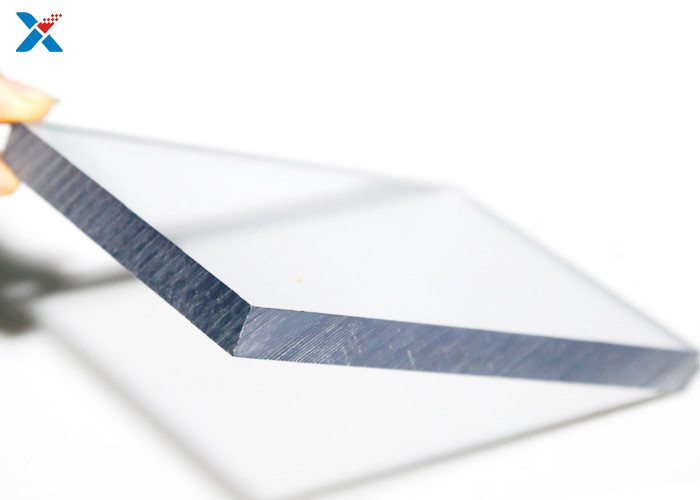

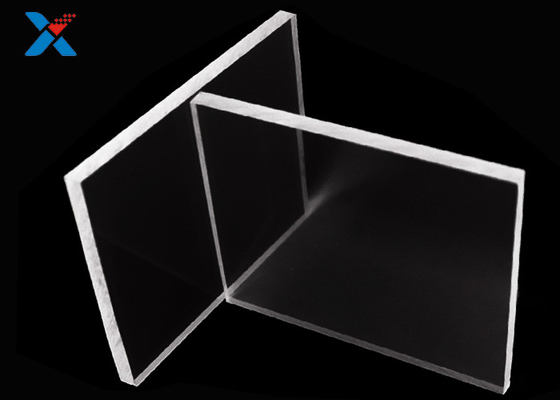

4mm Clear Polycarbonate Sheet Double Polished Plastic DIY Crafts

Certification
China Shenzhen XH Technology Co., Ltd. certification
I'm Online Chat Now

4mm Clear Polycarbonate Sheet Double Polished Plastic DIY Crafts

4mm Clear Polycarbonate Sheet Double Polished Plastic DIY Crafts
4mm Clear Polycarbonate Sheet Double Polished Plastic DIY Crafts 4mm Clear Polycarbonate Sheet Double Polished Plastic DIY Crafts 4mm Clear Polycarbonate Sheet Double Polished Plastic DIY Crafts

Large Image :  4mm Clear Polycarbonate Sheet Double Polished Plastic DIY Crafts

Product Details:
Place of Origin: China, Shenzhen
Brand Name: XH
Certification: ISO FCC
Model Number: XH 99
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: 2.835USD per KG
Packaging Details: 1500kg/Tray
Delivery Time: 7 working days
Payment Terms: T/T, Western Union
Supply Ability: 500000kg/per Month

4mm Clear Polycarbonate Sheet Double Polished Plastic DIY Crafts

Description
Size: 1220*2440mm, 1220*1830, Custom Size Density: 1.2g/cm3,
Color: Black ,Clear, Blue, Bronze, Green,opal Surface: Double Polished
Processing Type: Co-extrusion Sample Fee: Normal A4 Size Is Free, Just Shipping Fee
High Light:

4mm Clear Polycarbonate Sheet

,

4mm Polycarbonate Sheet

,

4mm Polycarbonate Plastic Sheets

4mm Clear Polycarbonate Sheet Double Polished Plastic DIY Crafts



4mm clear polycarbonate sheet PC roof plastic DIY crafts



1.  Polycarbonate Sheet

     Several common problems of polycarbonate PC solar panels
    Sunshine panels are widely used in construction, agriculture, greenhouses, canopies and other industries, and are a must-have material for large-scale lighting projects. However, at present, many customers do not have a high degree of recognition for sun panels, and they do not understand enough to a certain level. Let's analyze some common concerns, I hope to help you:
     1: the service life of PC solar panels: the service life of PC solar panels mainly depends on the raw materials used, and the service life of using new imported materials is more than ten years.
     2: whether the PC sun panel can increase the anti-aging UV layer.
     3: The correct installation method is also a way to ensure the long-lasting use of the solar panel.
     Uses of sun panels: greenhouses, sports venues, lighting roofs of ecological manors, garages, canopies, highway sound barriers, indoor partitions, etc.
     Sunshine board price: Due to the thickness, quality and color of the board, the price is also different.
     Sunshine board standing color: transparent, sky blue, lake blue, green, etc.
     Sunshine board transportation: keep it indoors, do not expose it to direct sunlight or rain, do not press heavy objects on the board, and do not have hard objects between the boards.

4mm Clear Polycarbonate Sheet Double Polished Plastic DIY Crafts 0



2.  Parameter

Proudction Method Co extrusion
Material : Polycarbonate Granule ; UV inhibitor
Color Clear, blue, bronze, green,opal
Light transmittance 50%--87%
Purpose General
Appearance Smooth
UV exposure UV protection
Thickness 1.5mm, 2.0mm, 3.0mm, 4.0mm, 6.0mm, 8.0mm, 10mm, 12mm, 16mm
Width 1220mm to 2100mm
Length For thickness 1.5mm to 5.0mm : max. 30.5m/roll ; For thickness5.0mm to 16mm : max.5.8m



3.  Clear polycarbonate sheet features:

     Polycarbonate (PC) solar panels have the following performance characteristics:
1. Temperature adaptability: Polycarbonate solar panels do not become cold and brittle at -40 °C, and do not soften at 125 °C, and their mechanics and mechanical properties have no obvious changes in harsh environments.
2. Weather resistance: The polycarbonate solar panel can maintain the stability of various physical indicators in the range of -40°C to 120°C. After 4000 hours of artificial weathering test, the yellowing degree is 2, and the light transmittance reduction value is only 0.6%.
3. Anti-condensation: When the outdoor temperature is 0°C, the indoor temperature is 23°C, and the indoor relative humidity is lower than 80%, the inner surface of the material will not condense.

 4mm Clear Polycarbonate Sheet Double Polished Plastic DIY Crafts 1


4.  Matters needing attention in the construction of PC solar panels
     1. The competition of the actual installation radius to enforce the law
When the solar panels of different thickness are straight and curved, the price of the solid board allows the minimum radius of the straight and curved solar panels to be different, and the minimum straight and curved radius of too thin can refer to the following introduction.
PC solar panel 4mm thickness: the minimum straight radius is 700mm
PC solar panel 5mm thickness: the minimum straight radius is 875mm
PC solar panel 6mm thickness: the minimum straight radius is 1050mm
PC solar panel 8mm thickness: the minimum straight radius is 1400mm
PC solar panel 10mm thickness: the minimum straight radius is 1750mm
     2. Before installation, the protective film should be lifted along the edge of the solid board manufacturer, and the position of the bead should be reserved, so that the beaded sunlight board directly touches the board. After the installation of the PVC gusset is completed, the protective film should be completely torn off, and the After the protective film is installed, the protective film is cut along the edge of the bead, because it is so easy to leave scratches on the board, and the board will crack along the scratches. For example, when using a solid solar panel with screws, the aperture should be more than 0.5 times the diameter of the screw to prevent the heat and cold from shortening and deforming and damaging the panel.



5.  XH Company and Production Line

4mm Clear Polycarbonate Sheet Double Polished Plastic DIY Crafts 2



7.  Package and shipping

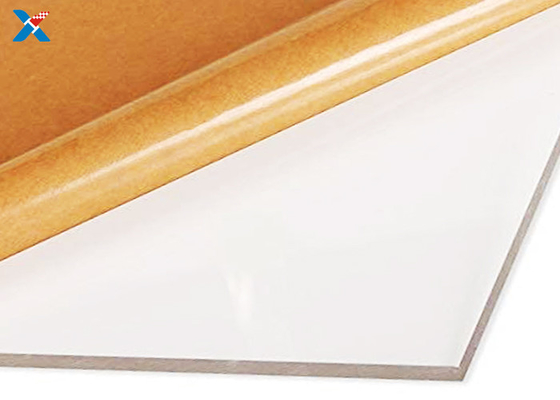

7.1. One piece of acrylic sheet package: double-sided covered with kraft paper or PE film, the cover film does not have any LOGO of our company.

7.2. Tray package: the total weight of each pallet is about 2 tons, the bottom is wooden pallet or iron pallet, and the surrounding is packed with corrugated paper.

7.3. The packaging method of the whole container: 20-23 tons (about 3000 pieces) 20-foot container, 10-12 pallets.

4mm Clear Polycarbonate Sheet Double Polished Plastic DIY Crafts 3
