| Brand Name: | XH |
| Model Number: | XH 99 |
| MOQ: | 50pcs |
| Price: | 2.835USD per KG |
| Packaging Details: | 1500kg/Tray |
| Payment Terms: | T/T, Western Union |

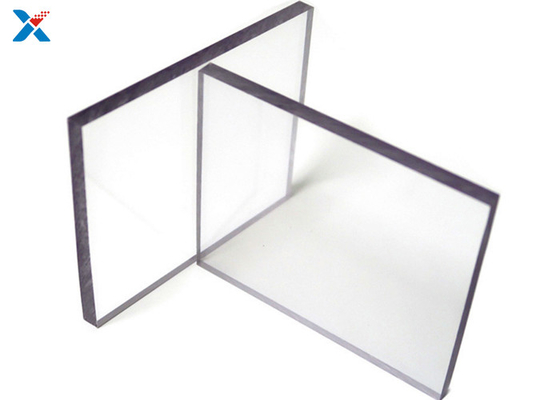

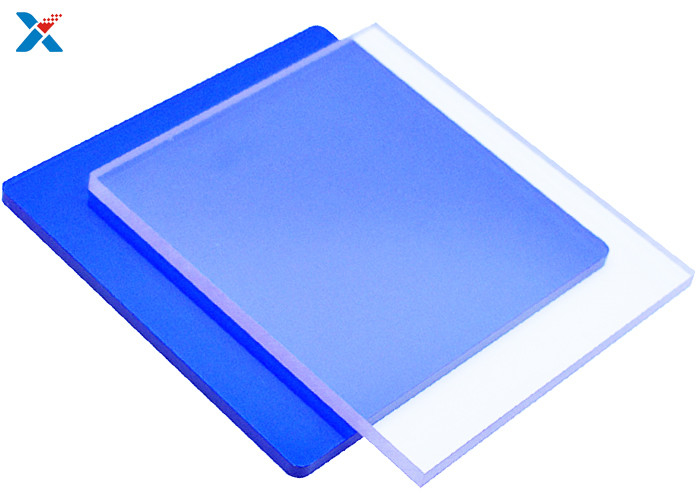

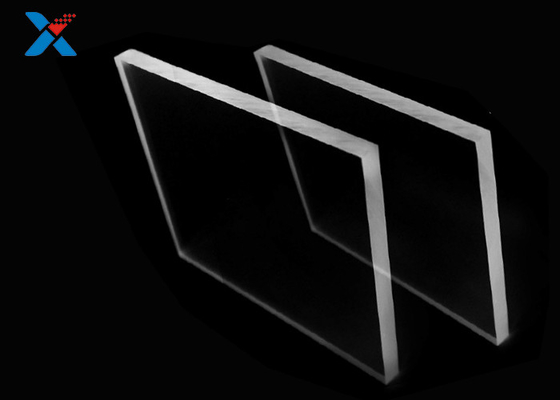

6mm Transparent Polycarbonate Sheet Unbreakable Roofing Panels
6mm transparent polycarbonate sheet unbreakable roofing panels
1. Polycarbonate Sheet
The function of PC endurance board
1. It is suitable for pavilions in gardens, amusement places and exotic decorations and resting places;
2. It can be used as a wardrobe endurance board, which is suitable for the interior and exterior decoration of commercial buildings and the curtain wall of modern urban buildings;
3. It is suitable for aviation transparent containers, motorcycle front windshields, airplanes, trains, ships, automobiles, motorboats and submarines;
4. It is suitable for the layout of telephone booths, advertising street signs, light box advertisements, and exhibitions; it is suitable for instruments, meters, high and low voltage switch cabinet panels, LED screen panels and military industries;
5. It is suitable for high-end interior decoration materials such as walls, ceilings and screens;
6. Suitable for noise barriers on expressways and urban elevated roads;
7. Suitable for agricultural greenhouses and breeding greenhouses;
8. It is suitable for the ceiling of modern ecological restaurant;
9. It is suitable for the lighting ceiling of office buildings, department stores, hotels, villas, schools, hospitals, stadiums and public facilities;
10. Widely used in curtains.
2. Parameter
| Proudction Method | Co extrusion |
| Material : | Polycarbonate Granule ; UV inhibitor |
| Color | Clear, blue, bronze, green,opal |
| Light transmittance | 50%--87% |
| Purpose | General |
| Appearance | Smooth |
| UV exposure | UV protection |
| Thickness | 1.5mm, 2.0mm, 3.0mm, 4.0mm, 6.0mm, 8.0mm, 10mm, 12mm, 16mm |
| Width | 1220mm to 2100mm |
| Length | For thickness 1.5mm to 5.0mm : max. 30.5m/roll ; For thickness5.0mm to 16mm : max.5.8m |
3. Clear polycarbonate sheet features:
4. Matters needing attention in the construction of PC solar panels
1. The discussion of the two plates needs to reserve sufficient elastic space according to the rotation of the local temperature difference. In the case of PVC gussets, the gap severity is more than 50% of the screw diameter.
2. Please use special sealant, other types of sealants may corrode the plate, making the plate brittle and easy to crack. The PVC seal will corrode the board. When installing the solar panel, it is necessary to select the sealant paste and gasket suitable for polycarbonate plastic, and it is strictly forbidden to use the PVC seal and gasket. It is forbidden to touch alkaline substances and aggressive organic solvents in the board, such as alkalis, amines, ketones, aldehydes, ethers, halogenated hydrocarbons, aromatic hydrocarbons, formaldehyde-based propanol, etc.
3. During the construction process, the screws on the board should be suppressed directly, and the screw holes should be touched first, and then the screws should be installed. If the plate needs to be straight and curved, the straight and curved force should be suppressed on the screw.
4. The solar panel can be roughly straight and curved means that it can be roughly straight and smooth in an arc shape, not roughly straight into any middle shape. When cold and straight, the straight and curved target must be perpendicular to the target of the plate ribs, the cold straight radius of the solar panel must be greater than 175 times the thickness of the plate, and the cold straight radius of the solid board must be greater than 100 times the thickness of the plate. Cold straight radius contest formula: R= 1/2h ㎡ /8h (R= straight radius; h= arch; m= span).
5. When the drilling device is used to allow the expansion of the plate, the diameter of the drilling should be greater than 50% of the diameter of the screw, and the distance from the screw hole to the edge of the plate should not be less than 50mm, and the screw should not be too tight. The screws should not be too dense. The main idea is to use one screw every 50cm or more (the thicker the plate, the larger the screw distance required)
6. Be careful not to touch with corrosive chemical solvents to prevent damage to the board. Please use neutral detergent or non-aggressive detergent to scrub with water to prevent surface marks.
5. XH Company and Production Line
7. Package and shipping
7.1. One piece of acrylic sheet package: double-sided covered with kraft paper or PE film, the cover film does not have any LOGO of our company.
7.2. Tray package: the total weight of each pallet is about 2 tons, the bottom is wooden pallet or iron pallet, and the surrounding is packed with corrugated paper.
7.3. The packaging method of the whole container: 20-23 tons (about 3000 pieces) 20-foot container, 10-12 pallets.
|
|
