Clear Perspex Abrasion Resistant Acrylic Sheet With UV Hard Coating

Clear Perspex Abrasion Resistant Acrylic Sheet With UV Hard Coating
Clear Perspex Abrasion Resistant Acrylic Sheet With UV Hard Coating Clear Perspex Abrasion Resistant Acrylic Sheet With UV Hard Coating Clear Perspex Abrasion Resistant Acrylic Sheet With UV Hard Coating

Large Image :  Clear Perspex Abrasion Resistant Acrylic Sheet With UV Hard Coating

Product Details:
Place of Origin: China, Shenzhen
Brand Name: XH
Certification: ISO FCC
Model Number: XH AR
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: 5.835USD per KG
Packaging Details: 1500kg/Tray
Delivery Time: 7 working days
Payment Terms: T/T, Western Union
Supply Ability: 50000kg/per Month

Clear Perspex Abrasion Resistant Acrylic Sheet With UV Hard Coating

Description
Size: 1220*2440mm,Custom Size Density: 1.2g/cm3,
Color: Transparent Sample Fee: Normal A4 Size Is Free, Just Shipping Fee
Process Service: Custom Cut To Size,laser Dot,UV Printing Lead Time: 7-10 Days After Your Order
High Light:

Perspex Abrasion Resistant Acrylic Sheet

,

UV Hard Coating Clear Perspex Sheet

,

2440mm Transparent Perspex Sheet

Clear Perspex Abrasion Resistant Acrylic Sheet With UV Hard Coating



Clear scratch resistant acrylic sheet UV hard abrasion coating perspex sheet technologies

1.  Hard Coat Acrylic Sheet  Description
      Surface chemical treatment mainly uses laser and other means to change the surface structure of the sheet.
The surface hardness value of the acrylic mirror panel is represented by the H value, which generally refers to its surface scratch resistance. The surface of the ordinary acrylic mirror panel can only reach about HB~2H, and the acrylic panel after surface hardening treatment can be improved to 6H- 8H. The higher the H value, the higher the surface hardness value of the object.
      However, due to the relatively high cost of surface hardening technology, and the current hardness requirements of acrylic can meet the needs of a variety of customers, currently, except for customers with high hardness requirements, acrylic mirror panels are rarely surface hardened during production. deal with.
      Although there are various methods to change the surface hardness of the acrylic mirror sheet, if the original optical properties of the acrylic mirror sheet are still retained after the surface hardening treatment of the acrylic mirror sheet, silicone is used as the main component and a small amount of metal is doped. The surface coating process of oxides and other additives is currently the preferred process for surface hardening of PMMA/PC sheets.
      The hardening liquid is sprayed on the surface of the acrylic mirror panel by the spraying equipment, and the surface hardened layer is obtained by baking.

     Hardened plate, also known as hardened wear-resistant plate. Using optical grade acrylic sheet or PC sheet as the base material, the surface is strengthened and improved by nano-hardcoating technology, so that the surface hardness is increased to 4-5H, with wear resistance, scratch resistance, high temperature and humidity without deformation, etc. Features. It is an ideal material for the manufacture of optical lenses, electrical panels, instrument panels, signs and protective screens.

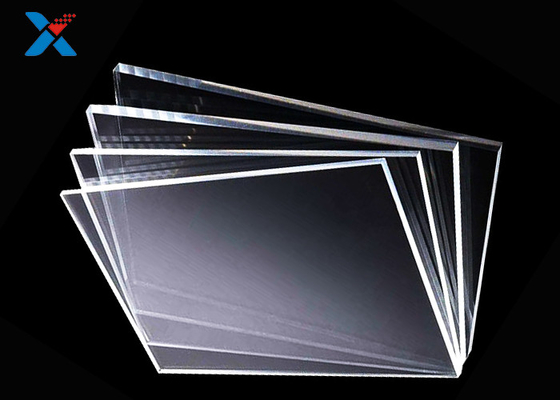

Clear Perspex Abrasion Resistant Acrylic Sheet With UV Hard Coating 0

2.Parameter

Item Place of Origin Guangdong China
Brand Name XH (Acrylic sheet manufacturer)
Model Number H-001
Material High quality Virgin MMA raw material
Specification Thickness 2mm-50mm
Acrylic sheet Size 2440x1220mm, 1220*1830mm, customized
Density 1.2g/cm3
Appearance Color Clear / Black / White / Blue / Red or customized
Light Transmission >92.8%
Surface Double Polished
Process Available Processing Type Cast
Process Service Custom Cut to Size,laser dot,UV printing
Sample Sample fee Normal A4 size is free, just shipping fee
Sample Time Normal size, 2days
Customized sample Fee and time will be discussed by both
Supply Capacity Production Ability 50000 Pieces per Month
Stock Regular size stock is sufficient
Lead time 7-10 days after your order
Package Acrylic sheet Covered by PE film or craft paper on double sides
Package Wooden pallet
Package size 2450mm*1250mm*700mm or customized
Package weight About 2000kg per pallet or customized
Trading Terms MOQ 50 Pieces
Main Market All over the world
Shipping Port Shenzhen/Guangzhou Port by Sea
Transportation By sea/ Air/ Express/Railway
Trading Terms FOB, EXW, CIF, CNF, FCA
Payment Terms T/T,Western Union, Paypal
Using Tips Storage Far away from organic solvents
Scratching Sharp objects may scratch the surface
Temperature Long time less than 85℃
Cleaning Clean with soft cloth or scrub with soap



3.  Features:
1. Light transmittance, no impurities, anti-scratch, thickness 0.5/0.65/0.8/1.0/1.2/1.5/2.0/3.0mm, hardness 4~6H, light transmittance above 93%.
2. Excellent transparency, excellent light conductivity, excellent surface quality and tolerance control.
3. The high-quality protective film is used for the board interview, and there will be no residual glue phenomenon.
4. The crystal point is controlled at the optical grade specification.

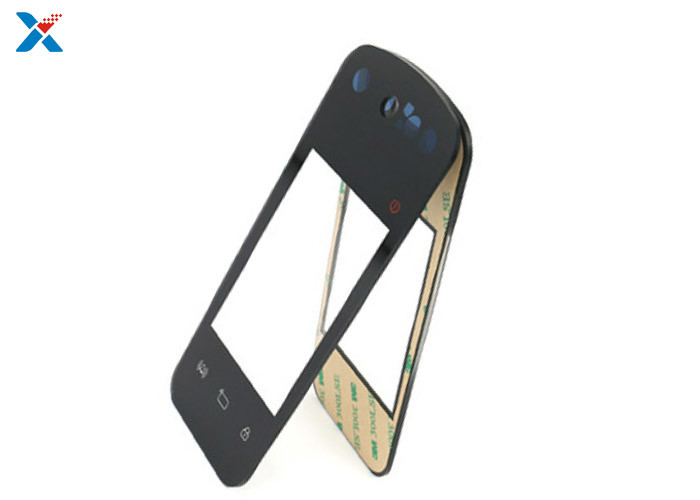

4.   Application of Hard coated Acrylic Sheet coating technology on mobile phone backplane

      1. It is suitable for vacuum coating, surface hardening treatment, high silk screen processing, etc.
       2. Suitable for light guide plates, electrical appliances (TVs, refrigerators, air conditioners, speakers) decorative panels, display screens, flat-panel TV panels, etc.
       3. Suitable for advertising light boxes, signs, lamps, bathtubs, instruments, daily necessities, furniture, etc.
       4. It is suitable for the manufacture of liquid crystal display (LED) light guide plates.

Clear Perspex Abrasion Resistant Acrylic Sheet With UV Hard Coating 1

5.  XH Company and Production Line

Clear Perspex Abrasion Resistant Acrylic Sheet With UV Hard Coating 2



7.  Package and shipping


7.1. One piece of acrylic sheet package: double-sided covered with kraft paper or PE film, the cover film does not have any LOGO of our company.
7.2. Tray package: the total weight of each pallet is about 2 tons, the bottom is wooden pallet or iron pallet, and the surrounding is packed with corrugated paper.
7.3. The packaging method of the whole container: 20-23 tons (about 3000 pieces) 20-foot container, 10-12 pallets.

Clear Perspex Abrasion Resistant Acrylic Sheet With UV Hard Coating 3
